HURRISE 100A 3000W DC Motor Speed Controller Switch with PWM Control, 12V Regulator for Electric Motors

Description: This is a simple and easy to use DC motor speed controller with elegant appearance and It is made with a high quality printed circuit board which guarantees a longer life. The input voltage can be from 10V to 50V DC and the control power from 1200W to 3000W (peak). This speed controller is universal which can be used on many DC brush motors in car cooling fan motor, car air conditioning motor, exhaust fan, etc. Specifications: Working voltage: DC10V to DC50V Maximum Rated Current: 60A Peak Current: 100A Control Power: 0.01W to 3000W The power changes according to the voltage: 12V * 100A = 1200W 24V * 100A = 2400W 30V * 100A = 3000W 50V * 100A = 5000W (peak) Quiescent Current: 0.04A (not more than 40mA when the voltage is DC10V to DC50V) PWM duty cycle: 0% - PWM frequency: 15kHz Operating temperature: -20 to 40 ¡æ Size: 14.6 x 8 x 3.8cm / 5.74 x 3.15 x 1.49 " Package includes: 1 speed regulator

• This simple and easy to use DC motor speed controller has a stylish appearance and
• This motor speed controller is large quantity for industrial use which can work normally when the operating temperature is below zero Celsius.

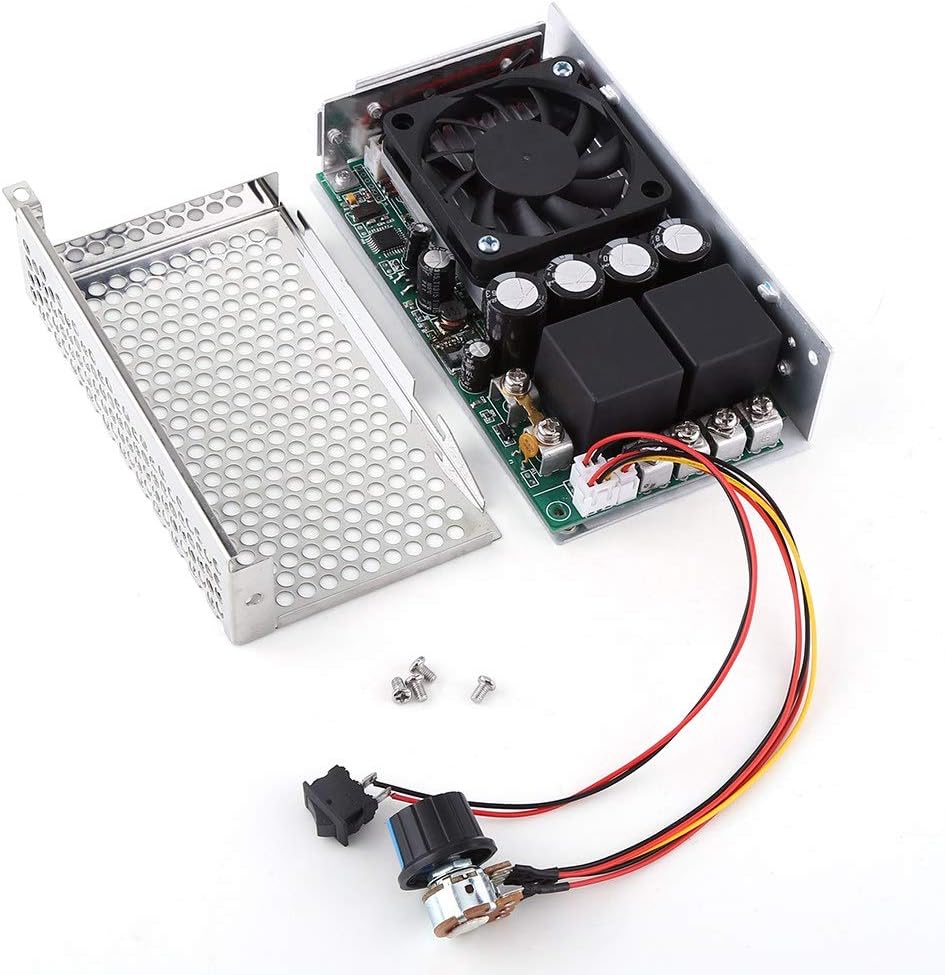

• Well-designed case can the controller board from damage and dissipate heat.
• Universal speed controller can be used for DC brush motor, suitable for car cooling fan motor, car air conditioning motor, exhaust blower, treadmill motor, etc.
• This motor speed controller can also be used to dim DC lamps or control DC heater.
